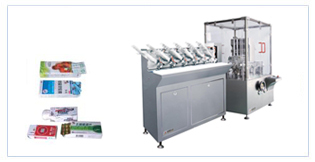

Automatic Box Packing Machine

Model No:	JDZ-90
Place of Origin:	Zhejiang,China (Mainland)
Brand Name:	jiade
Function:	blister packing
Patent Rights:	JIADE BRAND
Certificate:	ISO9001:2000
Export Area:	all over the world

Add to Basket

Automatic Box Packing Machine

Previous 1 ... 5 6 7 8 9 10 11 12 13 14 ... 24 Next

Automatic Box Packing Machine Description

Payment & Shipping Terms
Payment Term:	FOB
MOQ:	1 set
Means of Transport:	by sea

Supply Capacity
Production Capacity:	30sets/month
Packing:	wooden
Delivery Date:	30days

Applications:
This cartoning machine is suitable for packing pharmaceutical,bottle, capsule and injection,medicine,cosmetis,condom.food,tube,ointment,soft bag.It consists of direction folding (1-4 folds)and feeding equipment,cardboard case forming and feeding,batch number printing,sealing of case tongues at both ends ect.The whole encasing process is finished automatically.It can be added hot-glue machine.

Features:1.International famous brand of electric components such for PLC touch screen, frequency inverters,etc.
2.Adopt human-machine operation system.
3.Automatically displaying device for trouble,speed and finished products counting.
4.Automatica detection and rejection device for lacking of blisters goods or leaflets.
5.Stable performance,operation is easy.

Main technical parameters
Encasing speed		30-90boxes/min
Box	Quality requirement	250-350g/m²
	Dimension range（L×W×H）	(65-125)mm×(35-90)mm×(12-60)mm
	Quality requirement	50-65g/m²
Leaflet	Unfolded leaflet specification（L×W）	(80-300)mm×(70-210)mm
	Folded leaflet specification（1-4）	(70-210)mm×(20-40)mm
Compressed air	Working pressure	0.5-0.7Mpa
	Air consumption	120-160L/min
Power		220V/50Hz
Motor power		0.75kw
Machine dimension(L×W×H)		1265mm×1135mm×1640mm
Machine weight		1000kg

    Automatic Box Packing Machine has been presented above, want more similar products, please click cartoner machines,automatic cartoning machine,Box Packing Machine.
    Our Automatic Box Packing Machine is good in quality and competitive in price. We manufacture Automatic Box Packing Machine and supply OEM, ODM service according to your requirement.
    If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
