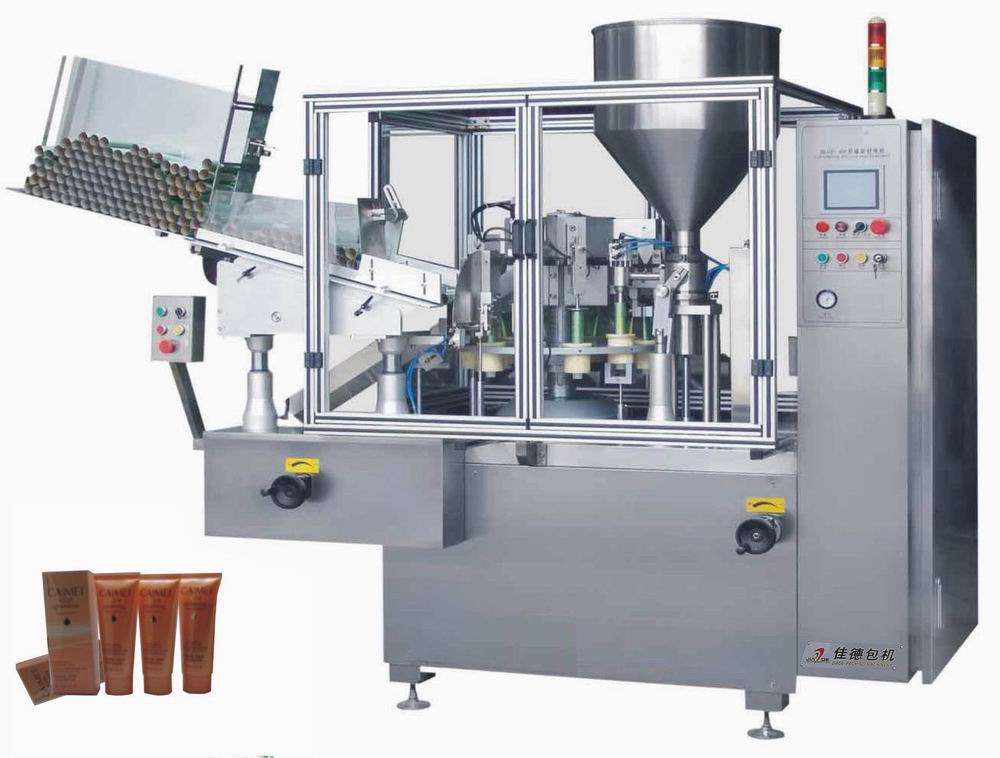

GF-400 L(F) Automatic Tube Filling and Sealing Machine

GF-400 L(F) Automatic Tube Filling and Sealing Machine

Model No:	GF-400
Place of Origin:	Zhejiang,China (Mainland)
Brand Name:	Jiade
Certificate:	ISO2000:2001
Export Area:	Australia,india,vietnam,

Add to Basket

GF-400 L(F) Automatic Tube Filling and Sealing Machine Description

Payment & Shipping Terms
Payment Term:	By T/T
MOQ:	1 set
Means of Transport:	By sea

Supply Capacity
Packing:	wooden case
Delivery Date:	45days

Detailed Product Description

This machine is a high technical equipment which successfully developed and designed by introducing into advanced overseas technology and integrating GMP requirement, with features of fair structure, full function, easy operation, accurate filling, stable running, as well as low noise. It adopt with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date), it’s an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries, comply with the standard of GMP.

Features:
1)High grade operation screen with LCD display PLC and buttons, easy operation and more humanization By stepless speed adjust, parameter set, out put count, pressure index and failure display.
2)Automatically executing tube supply, photoelectron register, inert gas filling(optional), material filling and sealing, batch number printing, final products output.
3) High precision photoelectron register, reduced the chromatic aberration scope.
4) Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variety products producing).
5) Mechanical, photoelectron, electric, pneumatic integrative controlling, reaches no tube no filling function; Waiting if tube error position or pressure too low, automatic stop machine if open the protective door.

Main technical parameters:
Model GF-400L GF-400F
Tube material: Metal tube, ALU tube Plastic tube, Compound tube
Tube diameter: 10-42 10-60
Tube length: 50-250(customizable)    50-250(customizable)
Filling volume: 5-500ml/branch(Adjustable)       5-800ml/branch(Adjustable)
Filling accuracy: 1%
Speed(r/min): 3-10 2.5-7
Product capaciy(Pc/min): 30-60 30-60
Working pressure: 0.55-0.65mpa 0.55-0.65mpa
Motor Power: 2kw(380V/ 220V 50Hz) 2kw(380V/ 220V 50Hz)
Heat sealing power: 3kw 3kw
Overall dimension(mm): 2620×1020×1980             2620×1020×1980
Machine weight(kg): 1100 1100

    GF-400 L(F) Automatic Tube Filling and Sealing Machine has been presented above, want more similar products, please click tube filling machine,tube saeling machine,Tube Filling and Sealing Machine.
    Our GF-400 L(F) Automatic Tube Filling and Sealing Machine is good in quality and competitive in price. We manufacture GF-400 L(F) Automatic Tube Filling and Sealing Machine and supply OEM, ODM service according to your requirement.
    If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
