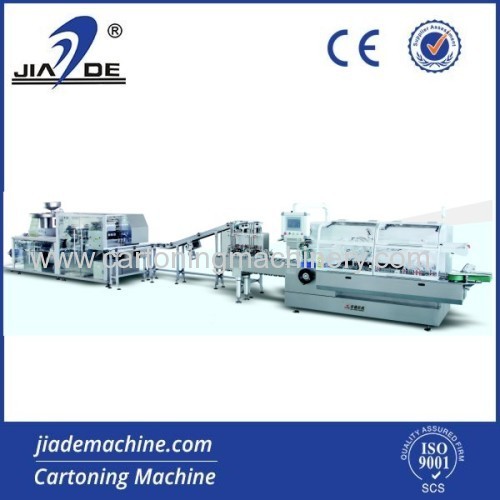

DPH-260 Automatic High Speed ALU-PVC Blister Packing Machine And Cartoning Machine Production line

Model: DPB-250 And JDZ-120
Place of Origin: Zhejiang,China (Mainland)
Processing: Packaging Line
Automatic Grade: Automatic
Type: General
Usage: Outer
Packaging: Paper
Brand Name: JIADE
Certificate: ISO9001:2008 CE SGS
Export Area: Austrialia,Asia,USA,
  video

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Trade Term:FOBProduction Capacity:20sets/month
Payment Terms:L/C, T/TPacking:wooden case
Min. Order:1 Set/SetsDelivery Date:60days
Means of Transport:Land, Ocean, Air

DPH-260 Automatic High Speed ALU-PVC Blister Packing Machine And Cartoning Machine Production line

First  DPH-260 Automatic High Speed ALU-PVC Blister Packing Machine

Blister - cartoning machine was innovatively developed by our own company. It is suitable for packaging chocolates, biscuits, perfume, essence, facemasks etc with AL/PL, Al/Al, PL/PL materials. It is equipped with a touch screen control system and frequency converter, with characterized by higher automation and easy operation. It is popular equipment for the foodstuff and cosmetics, particularly for those who are to make their own career.


FEATURES:
1. The distance can be adjusted freely in the same flat surface for forming, heat-sealing, perforation, punching parts etc. It is suitable for various sizes of foodstuff packaging, and it has high precision and good Suitability.
2. Adjustable stroke, automatic feeding, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, printing batch number with automatic perforation, mechanic dragging, easy operation, stable running.
3. It is adopted with imported gear reducer with lower noise and long life
4. Correct location of die pressure plate, convenience of replacement.
5. Combination mechanism, convenient to assemble and disassemble, easy maintenance. (The body can be manufactured separately in order to easily transport the machine into workshop)
6. Equipped with temperature reserve chocolate feeder, it can ensure the chocolate charged smoothly, freely and accurately.

Technical Parameters
Cutting Frequency (Times/min): 6-50
Capacity (10 thousand pcs/h): 3.5-23
Max. Forming Area and Depth(mm): 240*150*26
Stroke (mm): 40-160 can be manufactured as user's requirements
Standard Plate(mm) 80*57 can be manufactured as users requirements
Air Pressure (Mpa): 0.4-0.6
Total Power: 380V/220V, 50Hz, 6.2kw
Main Motor Power (kw): 1.5
PVC Hard Pieces(mm): 0.15-0.5*250
PTP Aluminum Foil(mm): 0.02-0.035*250
Dialysis Paper(mm): 50-100g*250
Mould Cooling: Tap water or recycling water
Overall Dimensions(mm): 2900*720*1550(L*W*H)
Weight (kg): 1600

JDZ-260 Automatic High Speed Cartoning Machine

It suitable for automatic inserting ALU/PVC blister, bottle, soft tube, soft AL/AL strips and pouch into carton, also can link to blister packing machine to form production line

Instruction

High Speed Cartoning Machine is new model which innovation design

base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry "GMP "standard

to manufacture. With high efficiency, high performance production capacity, leaflet folding and conveying, carton

opening and forming, posterior pushing structure and related technology all reach Europe and USA standards;

Simple design and posterior continuous pushing structure makes  operation and maintenance more convenient;

three equal rotation opening carton and under twice pre-forming device to ensure that carton open and form completely
This model is automatic high speed continuous cartoning machine which is high performance product incorporates

pneumatic-photo-electro-mechanic.

Feature

1.International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2.Adopt human-machine operation system.

3.Automatically displaying device for trouble, speed and finished products counting.

4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

5.No products not suction leaflet, no leaflet not suction carton.

6.Automatic detection and rejection device for lacking blister goods and leaflets.

7.Protecting automatically for overloading.

8.stable performance , operation is easy.

Item

Technical parameters

Encasing speed

260boxes/min

Box

Quality requirement

250-350g/M2[Base on carton size]

Dimension range(L×W×H)

(70-180)mm×(35-80)mm×(14-50)mm

Leaflet

Quality requirement

60-70g/M2

Unfolded leaflet specification(L×W)

(80-250)mm×(90-170)mm

Fold range(L×W)

[1-4]Fold

Compressed air

Working pressure

≥0.6mpa

Air consumption

160-200L/min

Power supply

380V 50HZ

Motor power

5kw

Machine dimension(L×W×H)

4800mm×1600mm×1860mm

Machine weight

3000kg
