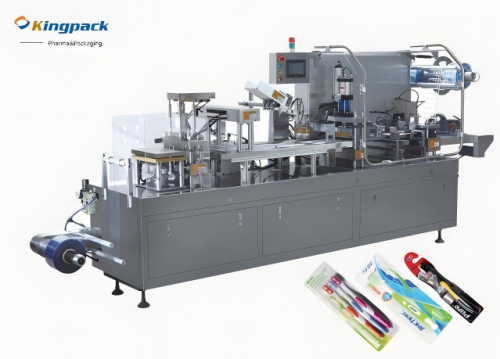

Automatic Blister Card Packing Machine DZP270/Automatic Paper Card-Plastic Toothbrush Brush Blister Packing Machine

I. Introduction:

This product is a new packing machine designed by our company; it has reached domestic leading level. It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, syringe as well as irregular shape Al-plastic, paper-plastic composite and Al-Al sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine adopts micro-computer PLC, frequency converter, touch panel operation, high automation; it is an ideal blister packing equipment. The product passed the provincial science and technology appraisal.

1.Usage
It is suitable for capsule, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.

2.Feature
 (1) Blister forming, hot-sealing, lot number printing, avulsion line impressing and cutting etc all adopt gear mandrel orientation, each can move freely in the mandrel when  rotate the hand wheel, and it equipped with a staff gauge, easy to adjust and can be performed quickly and accurately.
  (2) Manipulator towing adopted culms double pendulum device and increased traction adjustable range (it can get to as long as 180mm), which can fit for blister packing of  different sizes. All the movement of heating, forming, upper and lower net veins pressing, air cylinder pressing, feeding, lot number printing and cutting can be done very  simple, automatically and accurately.
  (3) Positive pressure forming matched with mechanical punch ensures well blister forming, and can be collocate with special automatic feeder to fit for certain packing such  as ampoule, vial, syringe, big honey pill, medical appliance or other special shapes.
  (4) Main transmission part adopts parallel axis and bevel wheel speed reducer. Forming, heat-sealing and impressing moulds adopt bolt orientating which leads to precise           orientation, easy to change moulds and material saving.
  (5) Detachable design makes the machine easy to be carried and installed according to user's requirement.

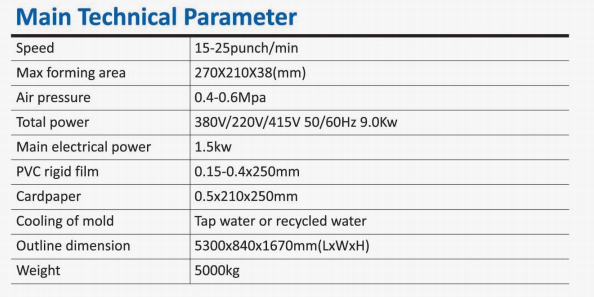

II. Technical Parameters
