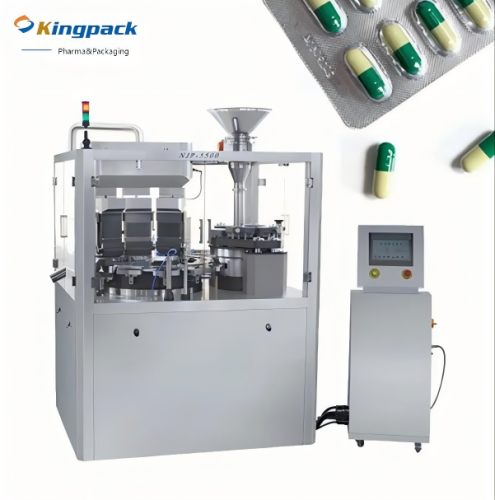

High Precision and Reliable Njp3500 Fully Automatic Powder Capsule Filling Machine

I. Product Description

1.1 Overview:

The NJP-3500 automatic capsule filler processes the products for optimal productivity up to 210,000 capsules per hour, featuring low-maintenance operation, minimal downtime, and overall dependable production. Powder dosing uses the 5 stage tamping technology for an enhanced accuracy. Filling of pellets is available.

1.2 NJP-3500 Capsule Filling Machine Principle of Operation:

Capsules from the bunker are fed into the orienting device along the vertical guide.

Then they are transferred into special cells on the rotor. Here the capsule is separated, after what the bottom part comes to the filling position.

After filling the bottom part with the material, on next positions the non-separated capsules are rejected, and the filled bottom parts are joined with top parts, counted and taken away into the receiving box.

The dose of material depends on the thickness of the dosing disk.

1.3 Features:

1.3.1GMP design with emphasis in powder dust handling: Enclosed main turn table avoid dust getting into mechanical parts.

 1.3.2 Enclosed dosing system with dust suction reduces cleaning frequency.

1.3.3Vacuum cleaning station for segment cleanup in each cycle.

 1.3.4Efficient capsule separation by means of vacuum.

 1.3.5Automatic control for capsule and powder supply.

1.3.6 PLC control (SIEMENS) for reliable operation.

1.3.7Touch Screen HMI, featuring user friendly controls: production counter, manual / automatic / parameter setup modes, alarms.

1.3.8Precision capsule segments and dosing disk minimizes adjustments following parts changeover.

1.3.9 SS 304 stainless steel frames and transparent safety interlock guards.

1.3.10 Special 3D design in dosing disc bottom ring, 5-column support prevents material fatigue and          deformation, ensures a constant gap of the dosing disc.

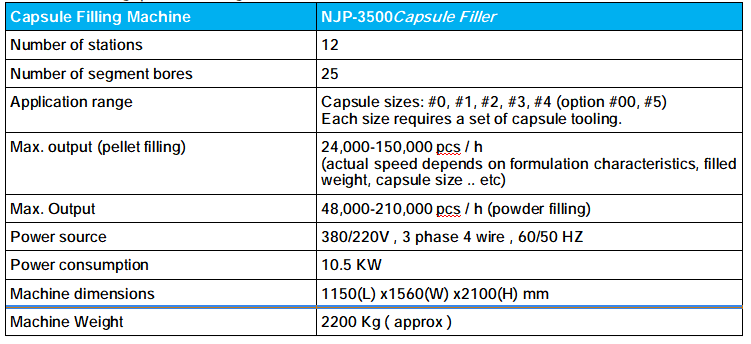

II. Technical Parameter:
